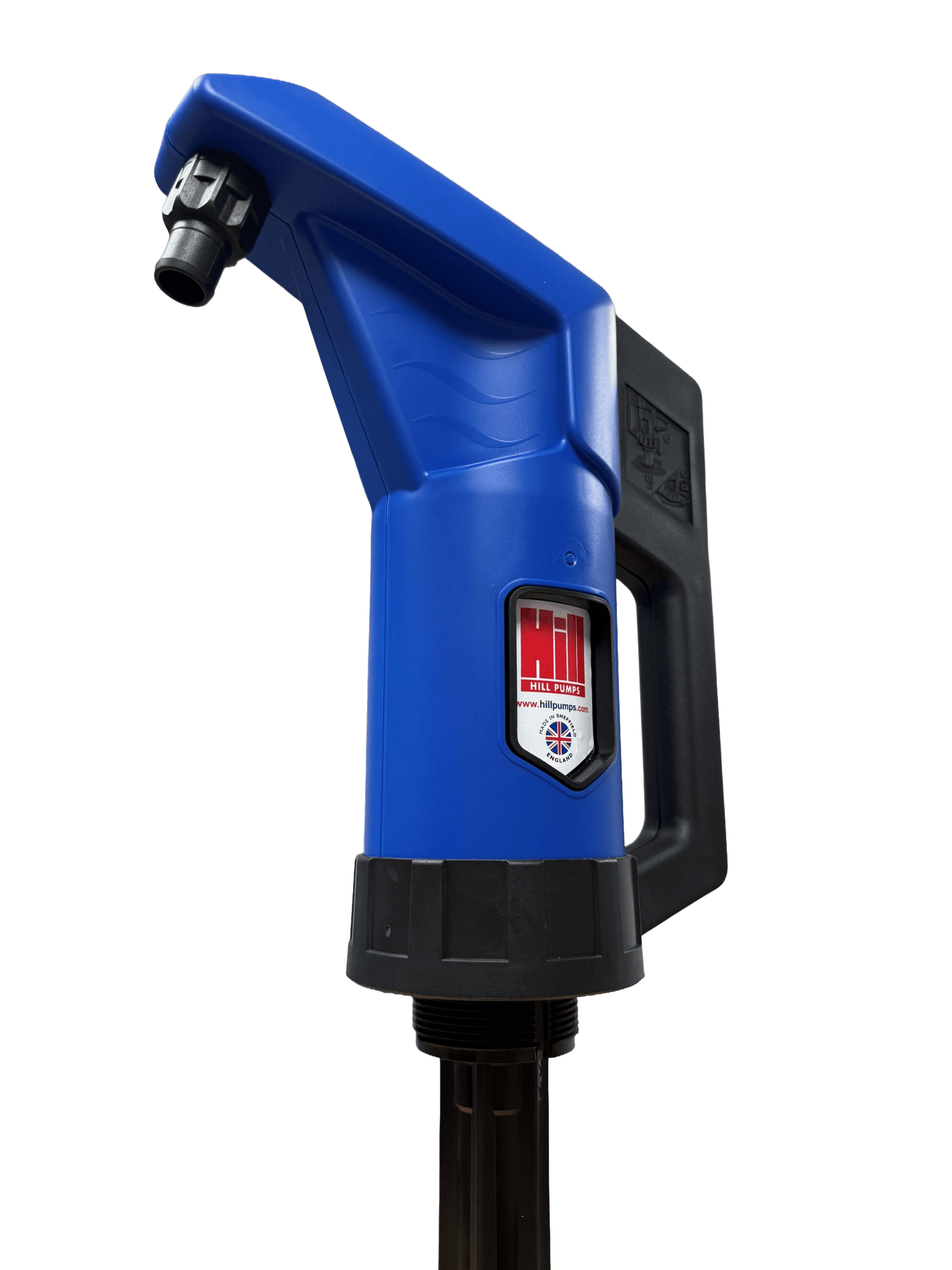

Hill 950 Series Hand Lever Pump

Name: Hill 950 Series Hand Lever Pump
SKU: 950-series
Availability: InStock

SKU: 950-series

Second Generation pump based on our iconic 1987 design.

Please select option for price

950 Series Hand Lever Pump

For transferring various fluids from tanks and drums. Also available in FDA approved food grade version.
Fits most barrels and drums

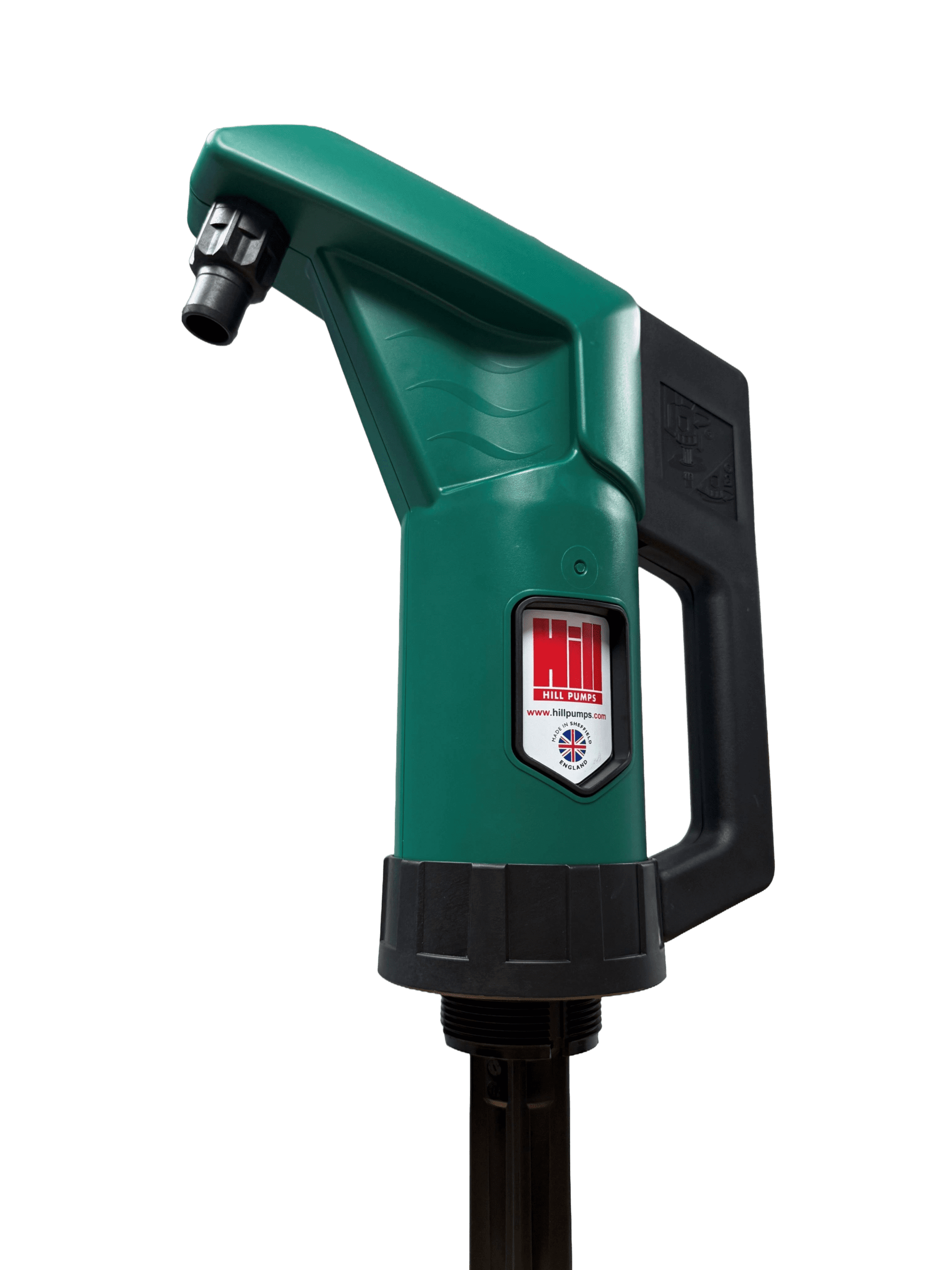

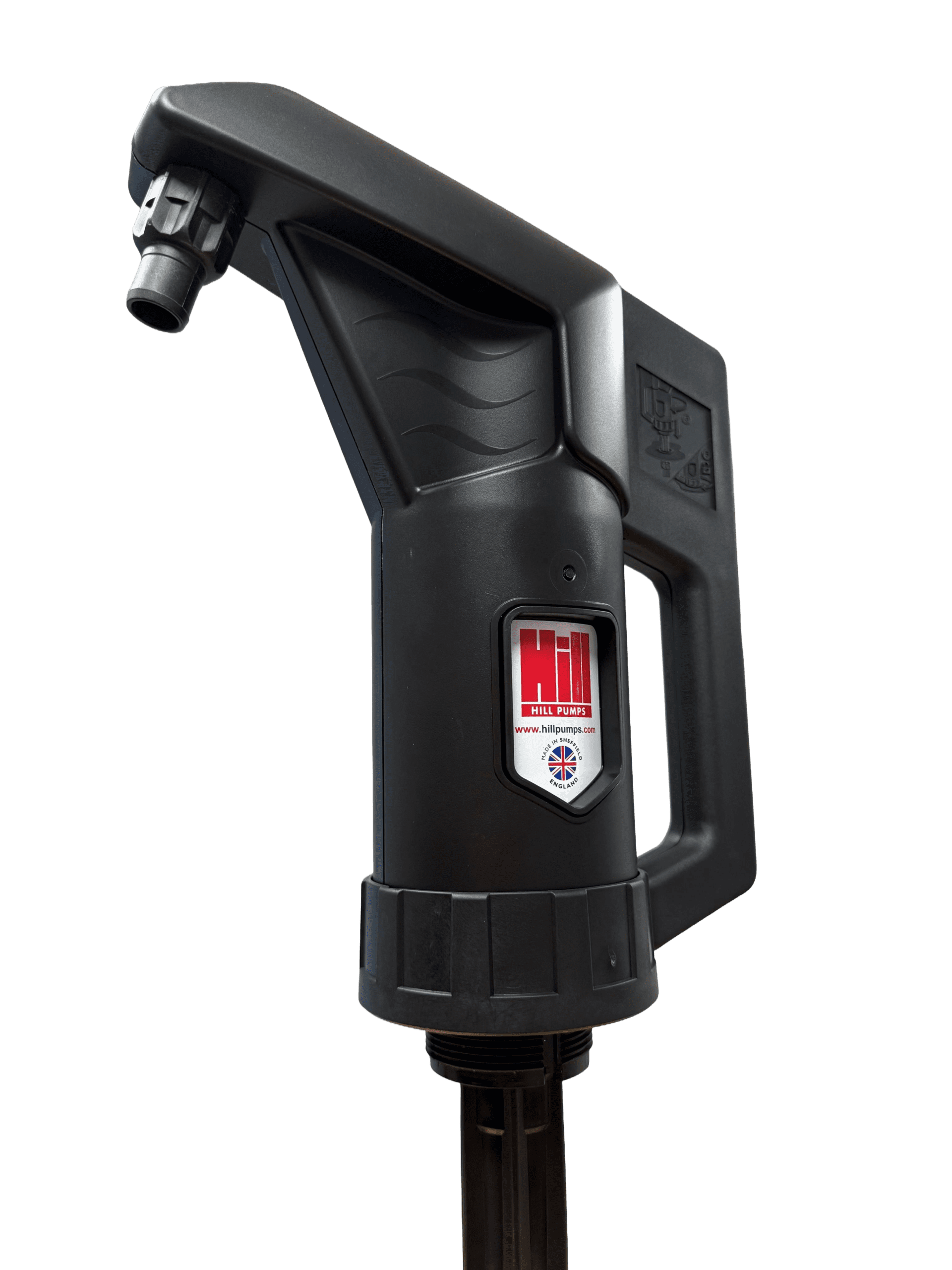

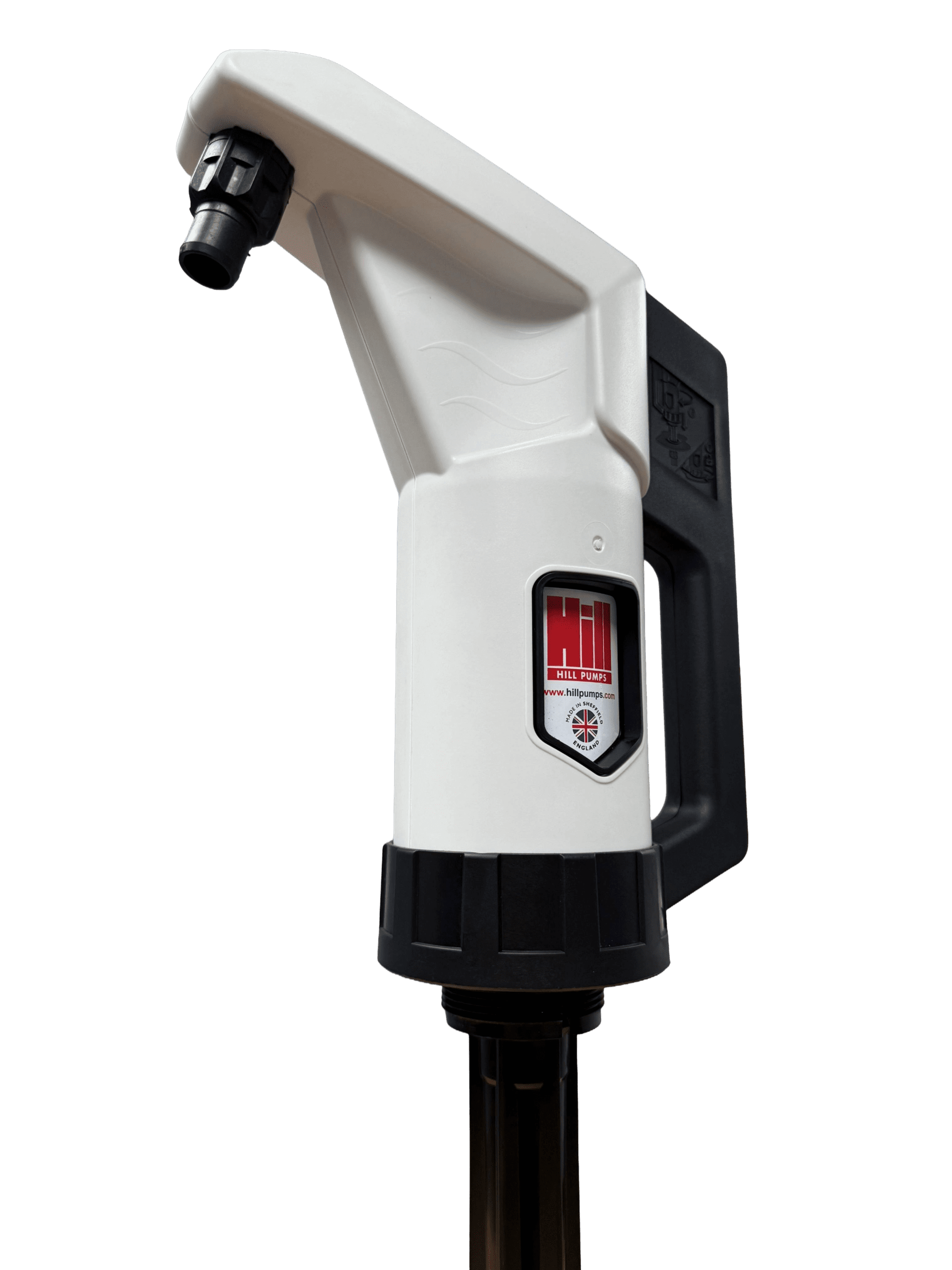

6 Colour Options Available: Red, Blue, Yellow, White, Black & Green.
4 Seal options available for wide-ranging chemical compatibility: Nitrile, Viton, EPDM & Food Grade
Average output per stroke: 375cc.
Quick-access valve assembly for easy maintenance.

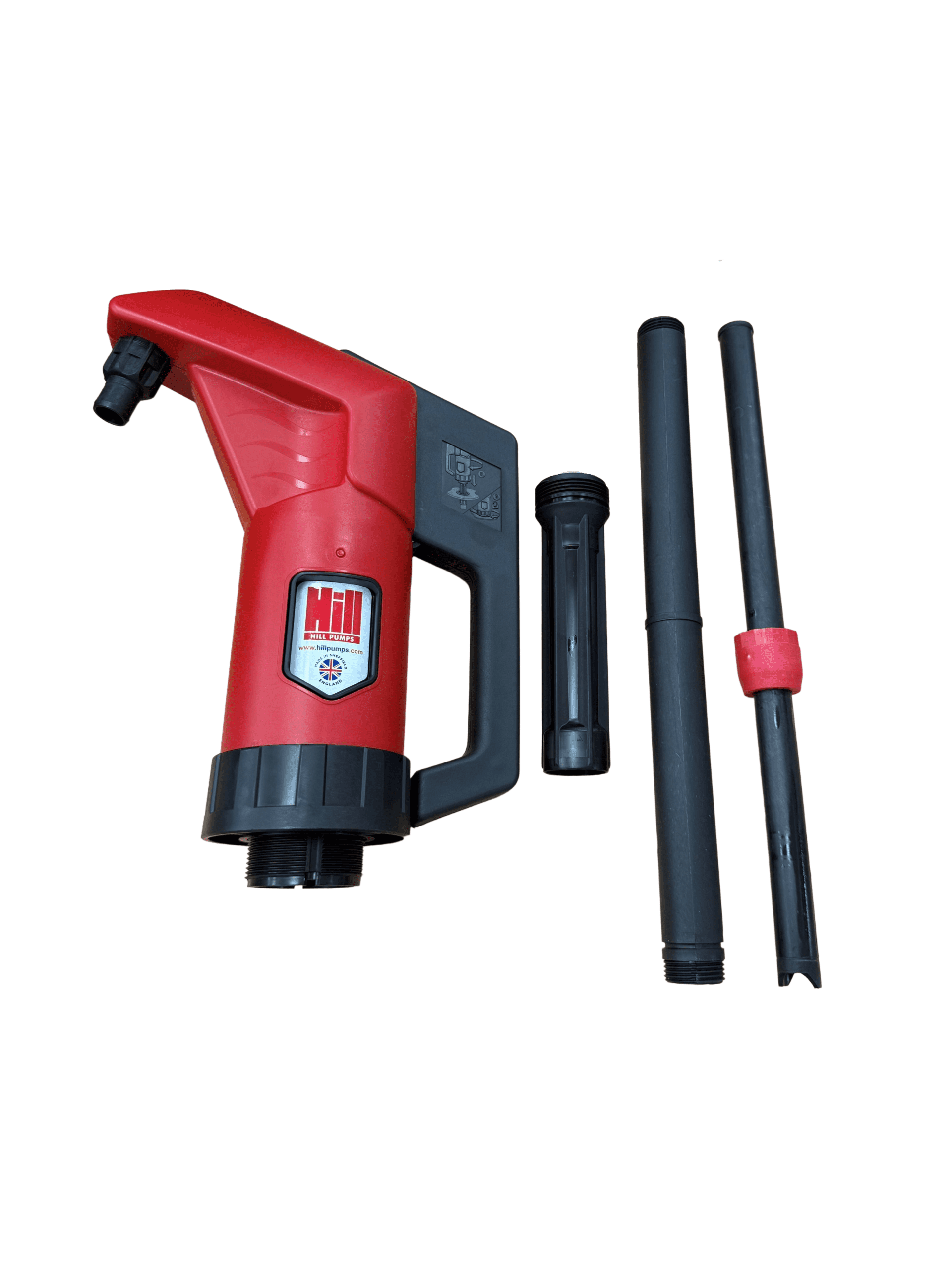

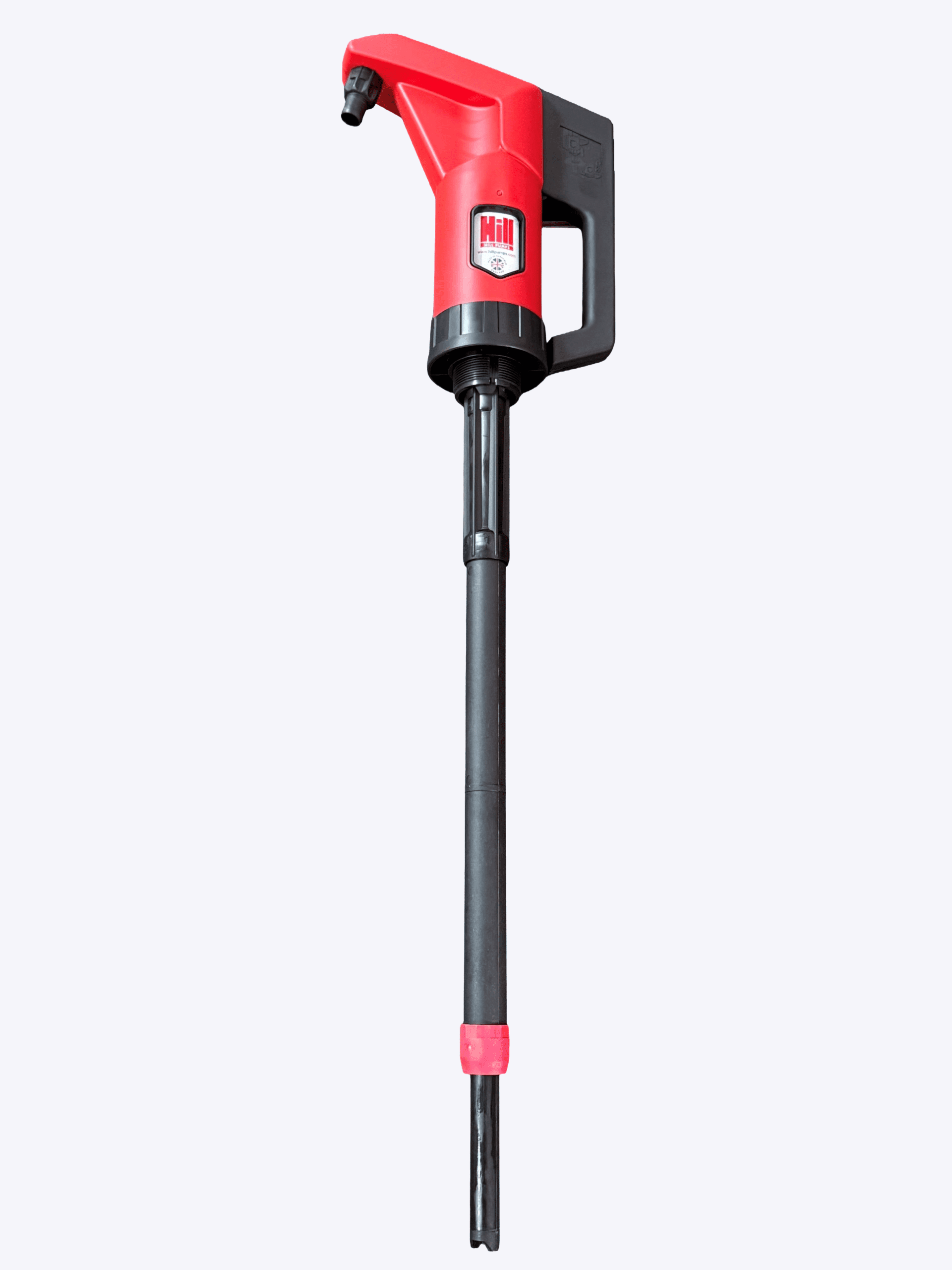

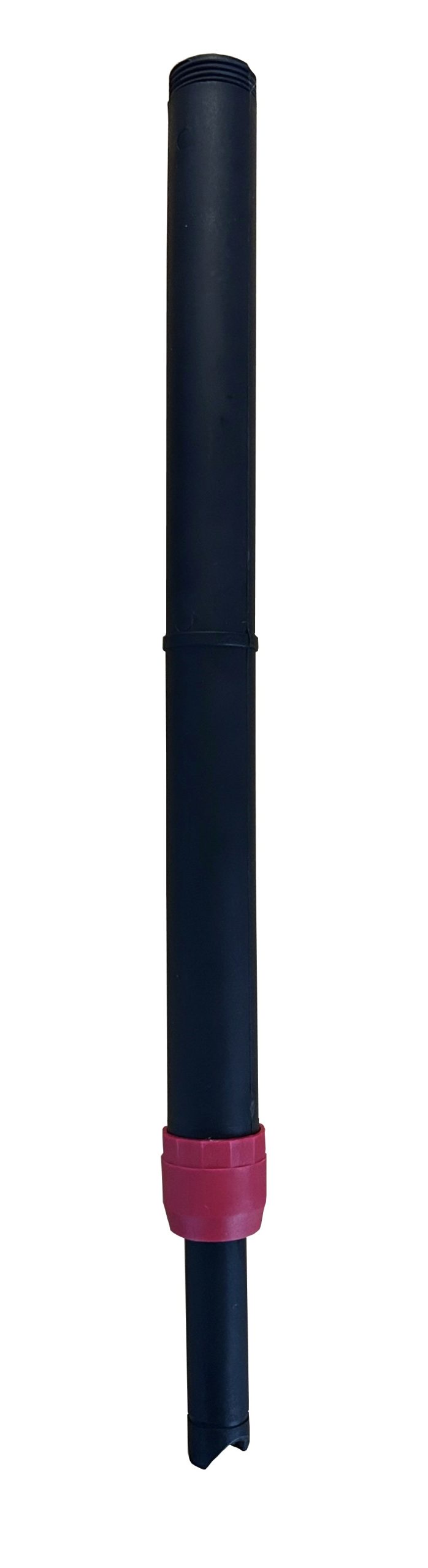

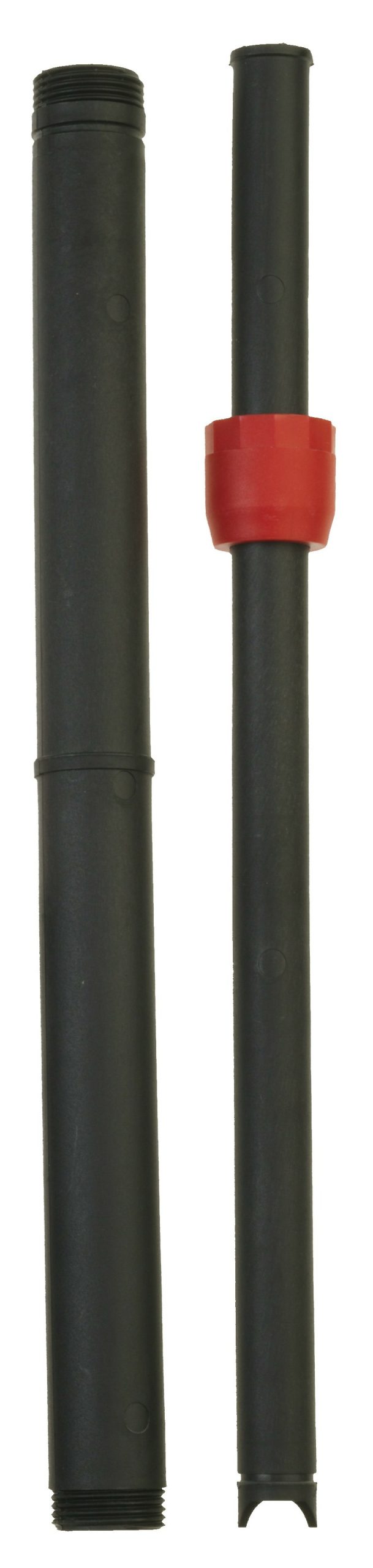

3 Piece compact uptake pipe included as standard, adjustable from 575mm to 965mm and lockable.
Embossed instructions embedded into the handle.

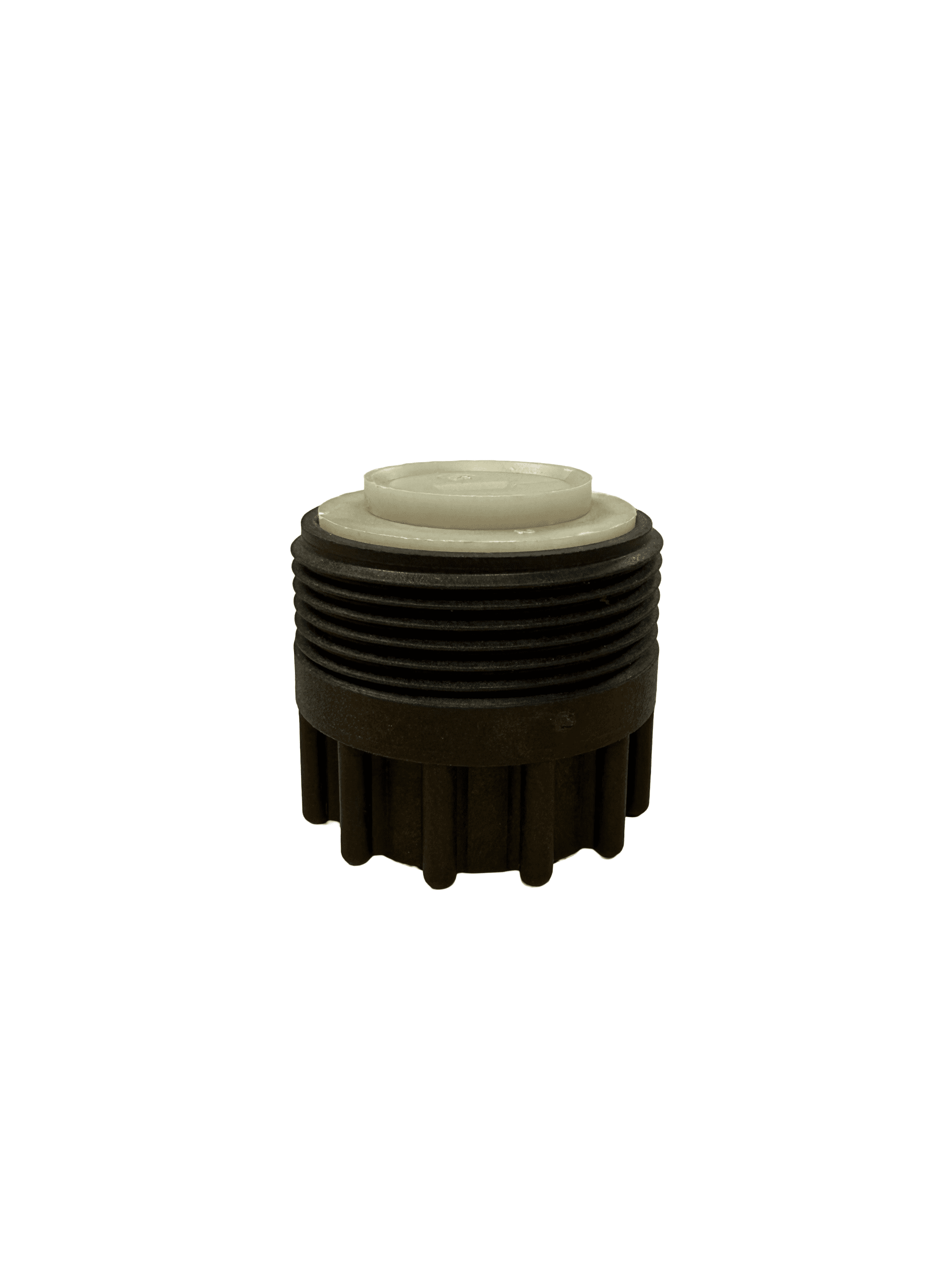

Various drum/container adapters available additionally
Lock-ring feature for 360 degree positional locking.

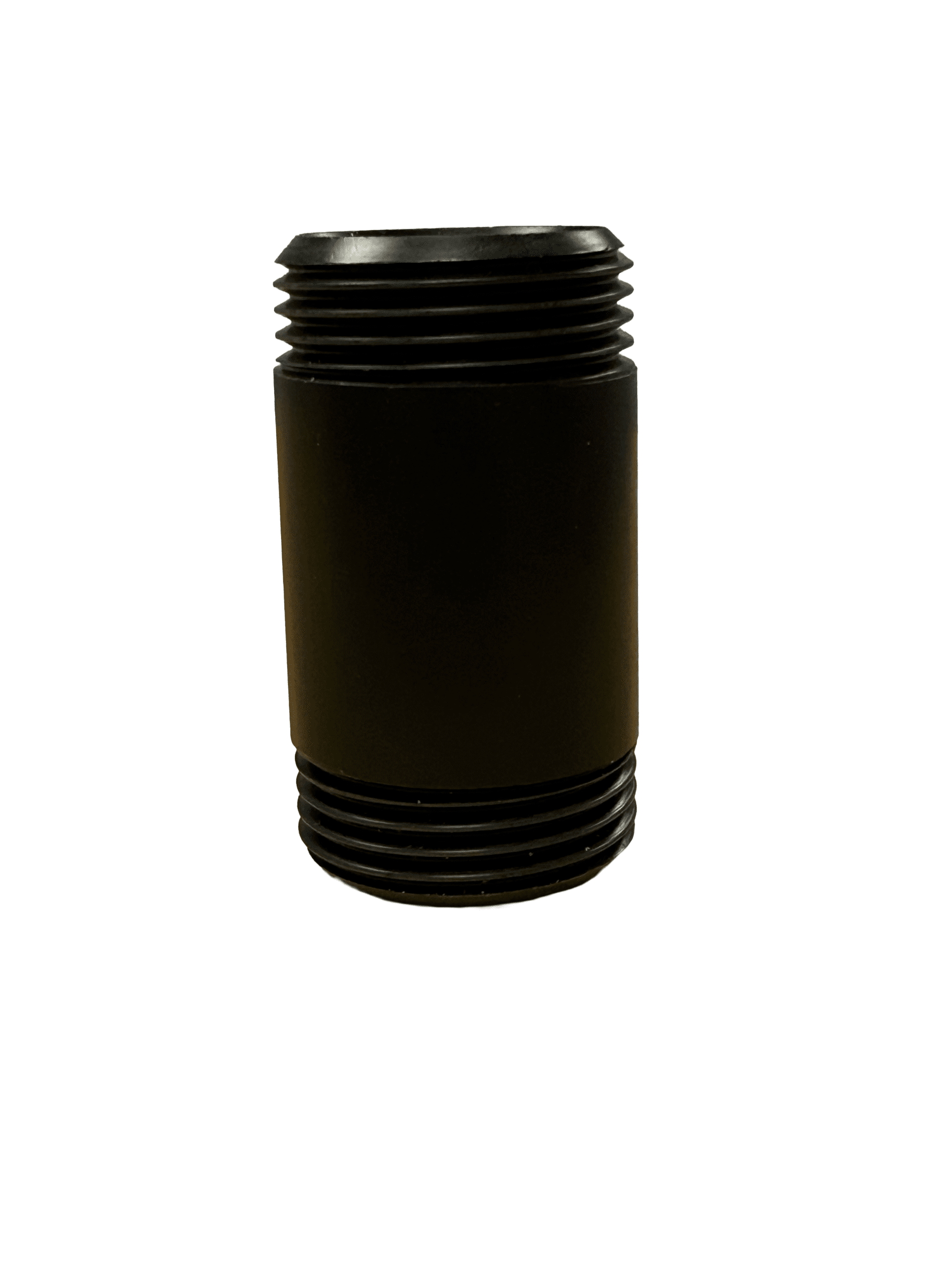

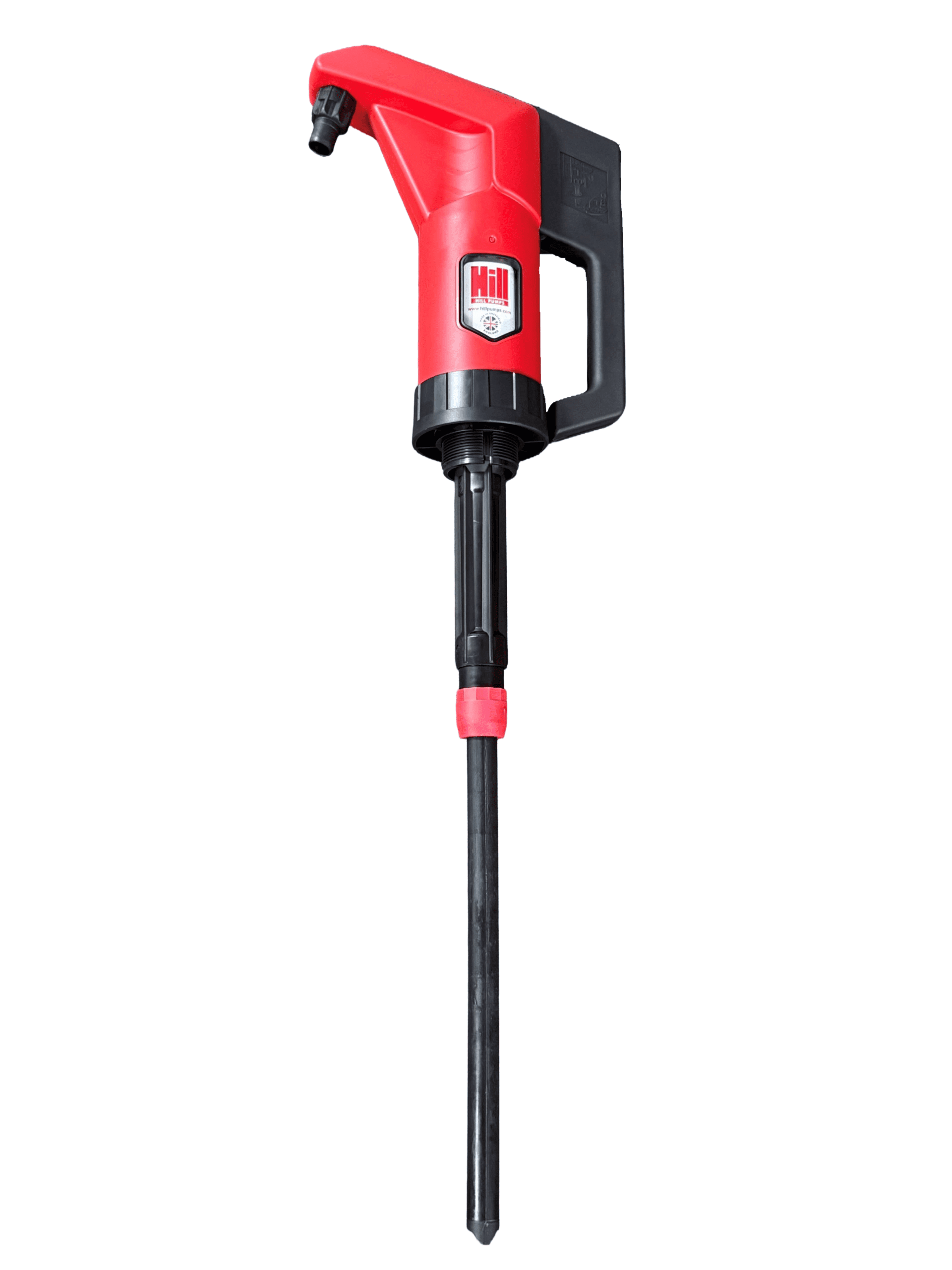

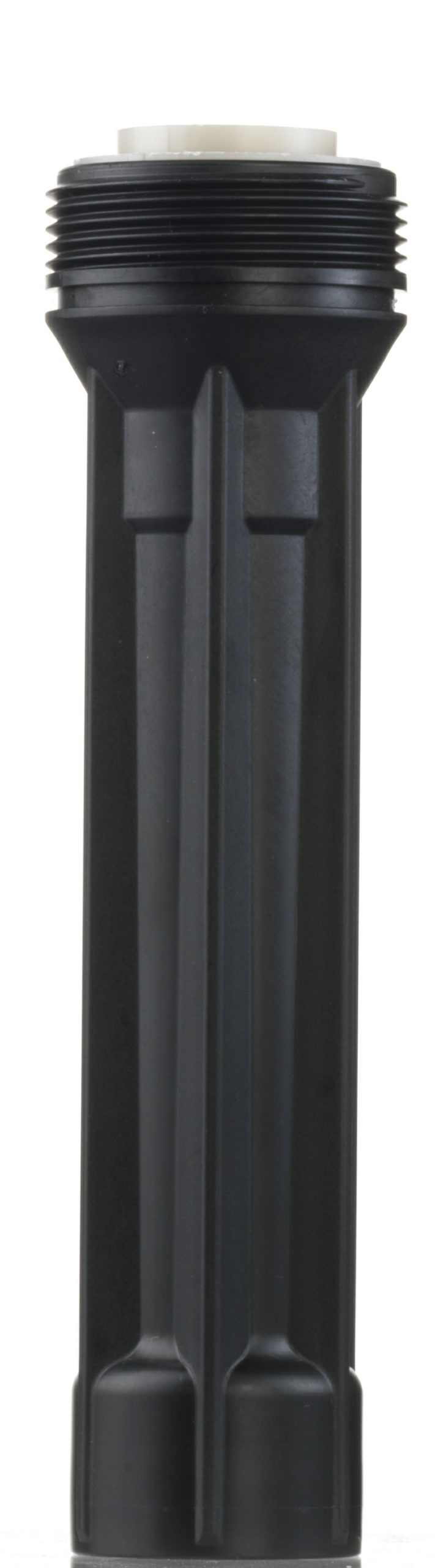

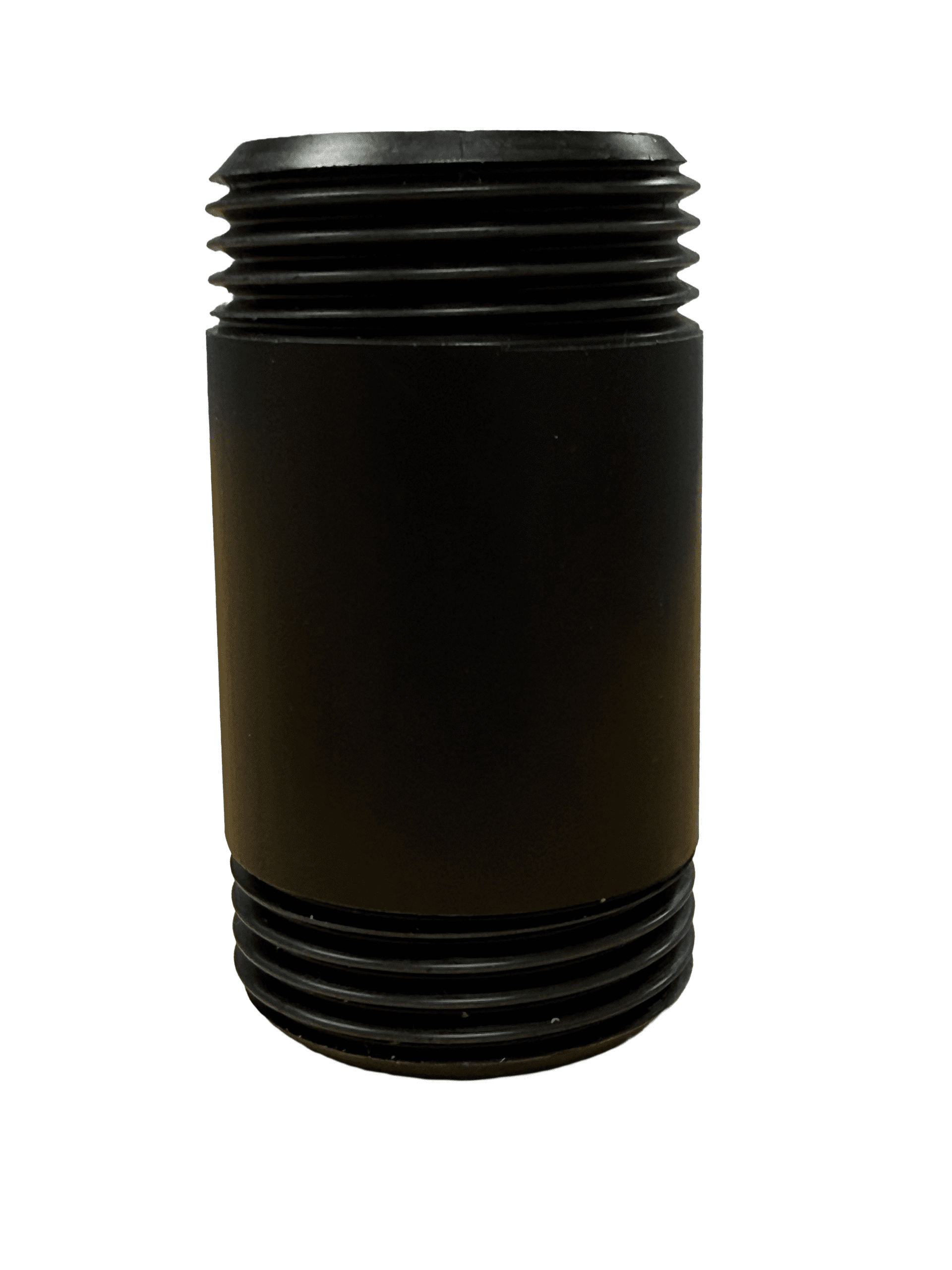

Optional short uptake adapter available for smaller, 20-60L, containers 410mm to 615mm.
Food Grade Pumps are supplied with 1 metre of food grade PVC hose, 2″ BSP drum fitting.
PFAS Free
Recyclable.

Put together your perfect Hill 950 Hand Pump with 3 simple options:

Choose your Colour: Red, Blue, Green, Yellow, White & Black.
Choose your Seal Type, depending on the fluids that you will be pumping (see below guide)
Choose your Uptake Pipe: Standard (for 60-205L Drums & Larger containers) or Short (for 20-60L drums and containers)

Nitrile Seals: suitable for lubricating oils, diesel, cutting oils, etc.
Viton Seals: suitable for transmission fluids, anti freeze, AdBlue many chemicals and in-organic acids stored in plastic containers.
E.P.D.M Seals: suitable for a more specialised range of fluids such as alcohols, diluted alkalis and organic acids.
Food Grade Seals: Made from food grade polypropylene with FDA approved Viton seals, no harmful colouring pigments, for pumping detergents and lubricants in food processing environments.

Would you like your own branded 950 pump? If so then take a look at our White Label Production Service
